ClusterResults(): Export, summarize, and visualize cluster memberships

Once you have fitted a hierarchical clustering model with Cluster() and decided on the optimal number of clusters with ClusterQuality(), the next step is to interpret and present the results. ClusterResults() is a small companion class that makes it easy to produce:

• Cluster membership table (important): Extract entities' cluster memberships for any number of clusters k.
• Distribution table (nice to have): Summarize how entities are distributed across clusters.
• Bar chart (nice to have): Visualize these distributions.

These ensures you can quickly link cluster labels back to your original dataset (e.g., if you have important variables such as gender and income), evaluate the balance of the cluster membership data, and prepare results for downstream analysis (e.g., index plot and state distribution plot for each cluster, and regressions).

Function usage

A minimal example with only the required parameter (sufficient for most use cases):

cluster_results = ClusterResults(cluster)

A complete example with all available parameters (for advanced customization):

# Fit a hierarchical cluster model first
cluster = Cluster(
  matrix=distance_matrix,      # square-form distance matrix (n×n)
  entity_ids=ids,              # unique IDs aligned with matrix rows
  clustering_method="ward"     # linkage method
)

# Then wrap results
cluster_results = ClusterResults(
  cluster=cluster              # required: a fitted Cluster object
)

# Example usage
memberships = cluster_results.get_cluster_memberships(num_clusters=4)
distribution = cluster_results.get_cluster_distribution(num_clusters=4)
cluster_results.plot_cluster_distribution(
  num_clusters=4,
  save_as="distribution.png",
  style="whitegrid",
  figsize=(10, 6)
)

Entry parameters

Parameter	Required	Type	Description
cluster	✓	Cluster	A fitted Cluster object containing linkage_matrix and entity_ids.

What it does

• Validates that input is a Cluster object.

• Stores:

  • linkage_matrix (hierarchical tree of merges)
  • entity_ids (original identifiers of rows/entities)

From there, the class provides three methods to map the tree back to interpretable cluster results.

Method 1: get_cluster_memberships(num_clusters)

Export a tidy table mapping each entity to its cluster.

Usage

df = cluster_results.get_cluster_memberships(num_clusters=4)
print(df.head())

Returns

pandas.DataFrame with two columns:

Column	Meaning
Entity ID	Original entity identifiers
Cluster	Assigned cluster ID (1 … k)

This table is ideal for merging back into your original dataset.

Method 2: get_cluster_distribution(num_clusters)

Summarize how entities are spread across clusters.

Usage

dist = cluster_results.get_cluster_distribution(num_clusters=4)
print(dist)

Returns

pandas.DataFrame with:

Column	Meaning
Cluster	Cluster ID
Count	Number of entities in that cluster
Percentage	Share of total entities, rounded to two decimals

Method 3: plot_cluster_distribution(...)

Visualize cluster sizes as a bar chart.

Usage

cluster_results.plot_cluster_distribution(
    num_clusters=4,
    save_as="distribution.png",
    style="whitegrid",
    figsize=(10, 6)
)

Entry parameters

Parameter	Required	Type	Description
num_clusters	✓	int	Number of clusters k.
save_as	✗	str or None	File path to save the figure (e.g., "clusters.png"). If None, just shows.
title	✗	str or None	Custom figure title. Default = "N = (number of entities)".
style	✗	str	Seaborn style theme (e.g., "whitegrid", "darkgrid", "ticks").
dpi	✗	int	Resolution when saving. Default = 200.
figsize	✗	tuple(float,float)	Figure size in inches. Default = (10, 6).

What it does

• Creates a bar plot with cluster IDs on the x-axis and entity counts on the y-axis.
• Adds percentage labels above bars for easy interpretation.
• Uses light grid lines and pastel palette for readability.
• Saves the plot to your computer disk if save_as is provided.

Returns

None. The figure is shown or saved to disk.

Example

# Fit model
cluster = Cluster(distance_matrix, ids, "ward")

# Code for ClusterQuality() is ommited here,
# but it is important to include it in your analysis.

# Export memberships
membership_table = cluster_results.get_cluster_memberships(num_clusters=5)
print(membership_table)

# Summarize balance
distribution = cluster_results.get_cluster_distribution(num_clusters=5)
print(distribution)

# Visualize

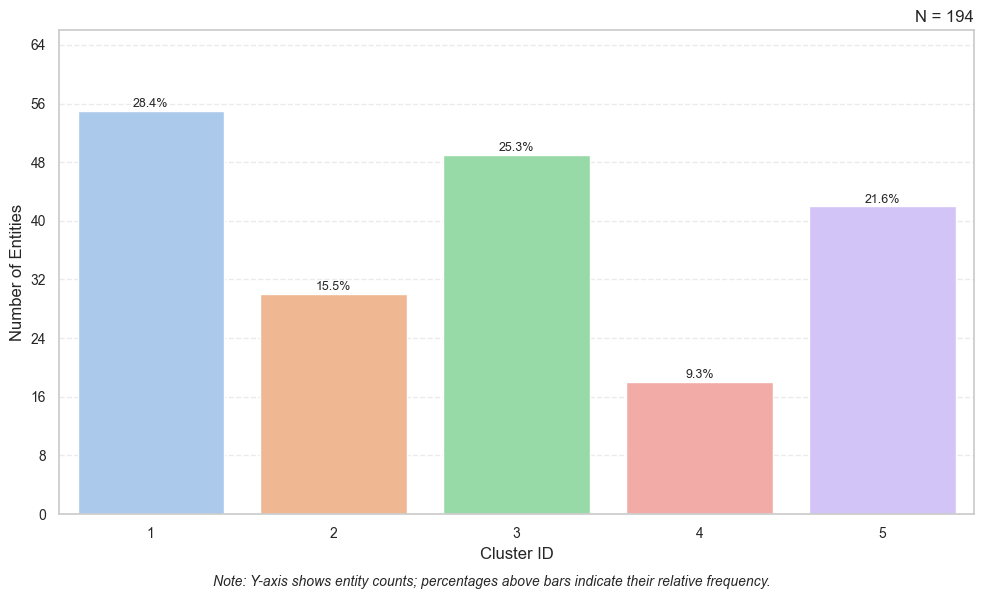

cluster_results.plot_cluster_distribution(num_clusters=5, save_as="distribution.png", title=None)

Output:

       Entity ID  Cluster
0    Afghanistan        1
1        Albania        1
2        Algeria        1
3        Andorra        3
4         Angola        4
..           ...      ...
189    Venezuela        1
190      Vietnam        4
191        Yemen        2
192       Zambia        3
193     Zimbabwe        5

[194 rows x 2 columns]
   Cluster  Count  Percentage
0        1     55       28.35
1        2     30       15.46
2        3     49       25.26
3        4     18        9.28
4        5     42       21.65
/Users/lei/Documents/Sequenzo_all_folders/Sequenzo-main/sequenzo/clustering/hierarchical_clustering.py:598: FutureWarning:

Passing `palette` without assigning `hue` is deprecated and will be removed in v0.14.0. Assign the `x` variable to `hue` and set `legend=False` for the same effect.

  ax = sns.barplot(x='Cluster', y='Count', data=distribution, palette='pastel')

Notes and warnings

• num_clusters in this class corresponds to SciPy’s t parameter in fcluster(). Don’t confuse this with k in k-means as here it simply means “number of clusters.”
• Always confirm that linkage_matrix is present in your Cluster object. Without it, membership extraction cannot proceed.
• Distribution plots are best used to check balance (e.g., if one cluster dominates). For deeper evaluation, pair this with ClusterQuality().

Authors

Code: Yuqi Liang

Documentation: Yuqi Liang

Edited by: Yuqi Liang, Sizhu Qu
